Description

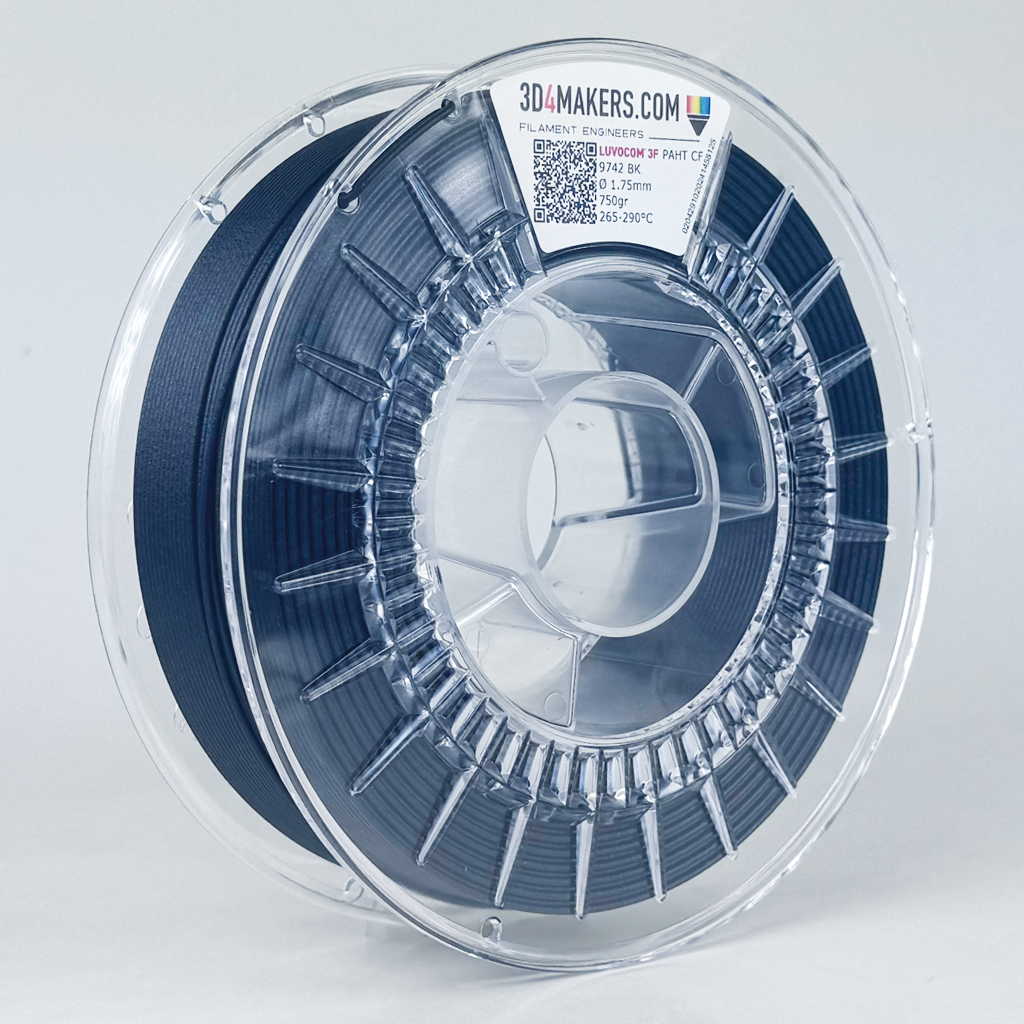

LUVOCOM® 3F PAHT CF 9742 BK is a premium carbon fiber-reinforced 3D printing filament, engineered for industrial applications demanding high performance and reliability. This PA6-based material is enhanced with 15% carbon fiber, offering superior mechanical properties and ease of use. This particular engineering polymer grade is tailored made for the 3D printing industry to match the injection molding strength requirements and focusing on the serial production of end-parts, the filament can be used on conventional FFF / FDM 3D printing systems without an heated chamber. This 3D4Makers PAHT CF filament features the following properties:
- Easy to Print: Excellent printability with minimal warping and improved layer adhesion for high-quality results.
- High Z-Strength: Exceptional strength in all directions, making it ideal for functional and structural parts.
- High-Temperature Resistance: Withstands demanding environments, ensuring durability under heat.
- ESD Safe: Suitable for sensitive electronic applications, providing electrostatic discharge protection.
Material properties
| Description | Value | Test method |
|---|---|---|
| Density | 1,25 g/cm³ | ISO 1183-3 |
| Tensile strength (at 23°C/50% rh) | 170 MPa | ISO 527 |
|
Elongation @Fmax |
1 %
|
ISO 527 |
|
Tensile modulus (dry, @1 mm/min) |
15 GPa | ISO 527 |
| Impact strength (dry) | 47 kJ/m² | ISO 179 1eU |
|
Heat distortion temp. |
200 °C | ISO 75 |
| Continuous service temperature (20.000 h) | 150 °C | EC 60216 |
| Service temperature (during lifetime max. 200h) | 180 °C | / |
|
Insulation resistance strip electrode (R25) |
≤10² Ω | DIN IEC 60167 |
| Surface resistance (ROB) | <10² Ω | DIN IEC 60093 |
Printer recommendations
| Description | Value |
|---|---|
| Printer nozzle temperature | 260 - 290°C |
| Heated bed temperature | 60 - 80°C |
| Print Speed | 40 - 60 mm/s |
| Bed Adhesion |
Magigoo PA on glass or a PEI Sheet |
| Pre drying recommendations |
- 100°C, 4 - 6 hours or 80°C, 12 hours - Profile also available for Drywise In-Line Dryer |
| Extra | We advise to use a adapted nozzle (>0.5mm) for carbon filled filaments |
*Printing profile available in Ultimaker Marketplace
To get the best results while printing we advise you to keep the 3D printer in a room where there is hardly any draft and/or temperature fluctuations. When the 3D printer is not being used it is important to keep filament in a bag and stored in a cool, dry and dark place until it is used again.
Documents
 |
Technical Data Sheet (149 KB) |
 |
Material Safety Data Sheet (224 KB) |
