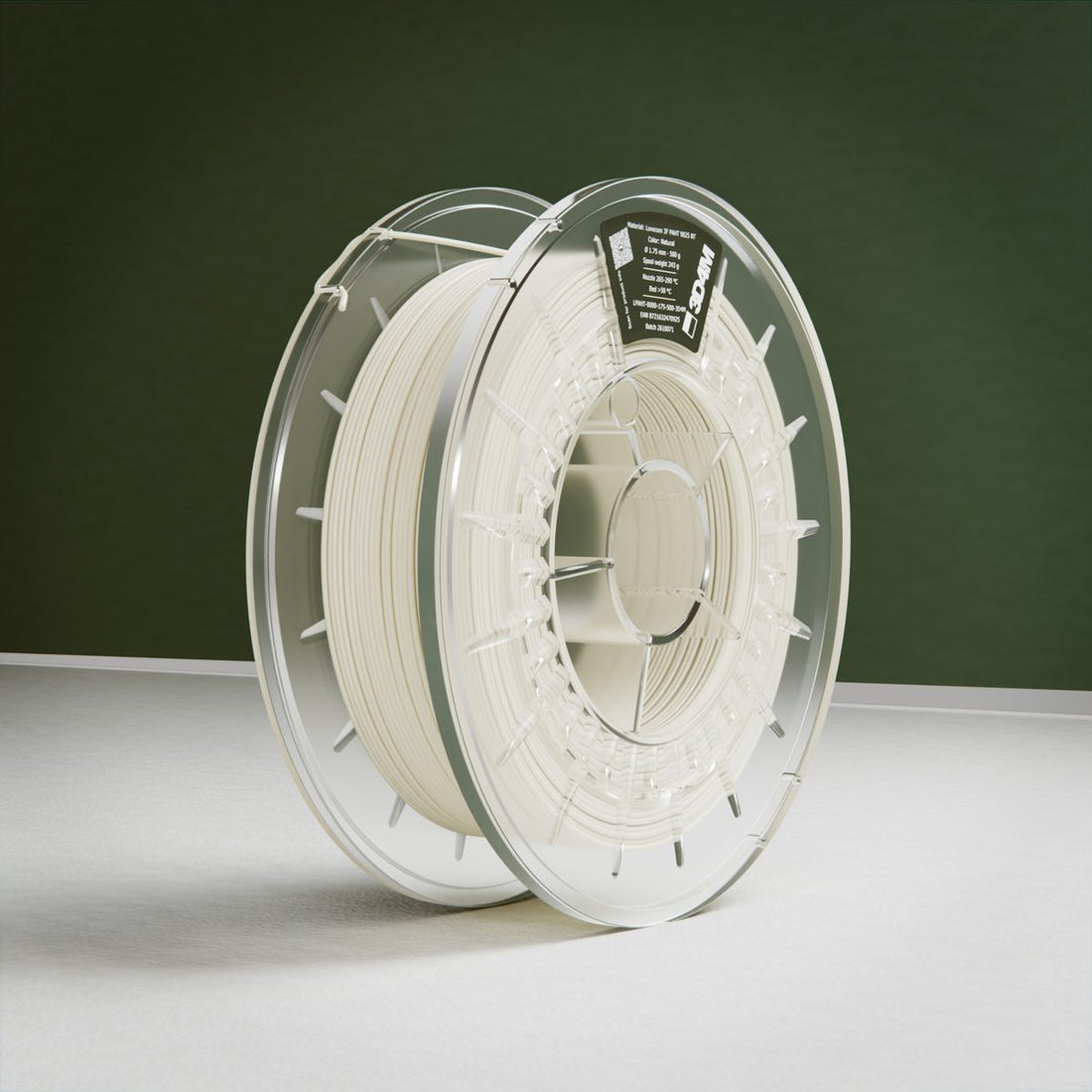

Luvocom® 3F PAHT 9825 NT Filament

3D4MakersSKU: LPAHT-0000-175-750-3D4M
3 reviews

Color: NT
Diameter: 1.75mm
Weight: 750 gram
Price:
Sale price€74.95 EUR
Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders
Powered by Shopify Planet

Description

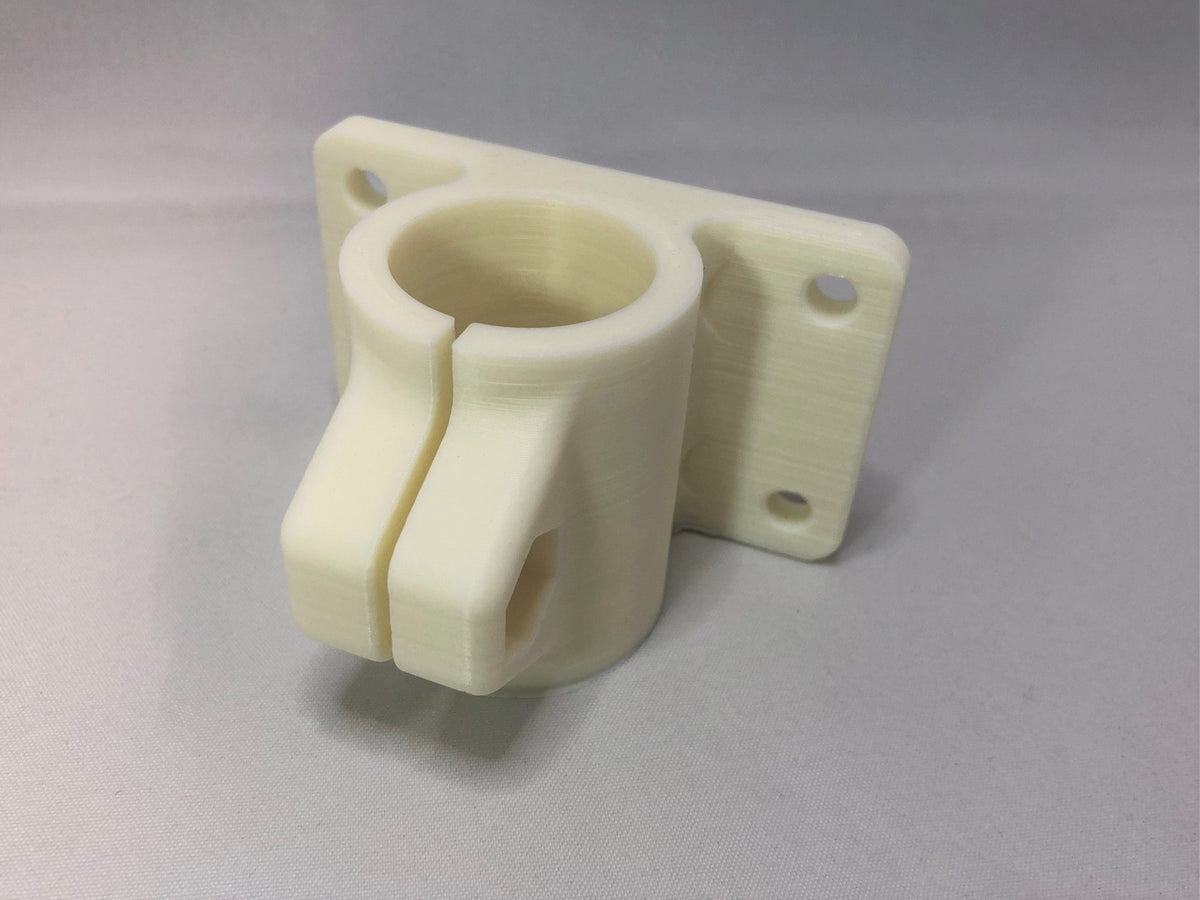

Luvocom® 3F PAHT 9825 NT Filament is a unreinforced High-temperature polyamide. Its water uptake takes about 4 times longer to reach the saturation point compared to unmodified PA6, also its saturation point is 5 times lower than conventional PA6 materials. This particular engineering polymer grade is tailored made for the 3D printing industry to match the injection molding strength requirements and focusing on the serial production of end-parts. The filament can be used on conventional FFF / FDM 3D printing systems due to the enhanced printability, improved layer bonding and the unrequired use of a heated chamber. This 3D4Makers PAHT filament features the following properties:

    • Easy to print, low warping and increased layer adhesion
    • Excellent tensile and impact strength
    • Suitable for industrial applications

     Micro CT analysis Luvocom PAHT 9825 VS Standard PA6

    Material properties

    Description Value Test method
    Density 1,20 g/cm3 ISO 1183-3
    Tensile  strength (at 23°C/50% rh) 85 MPa ISO 527
    Elongation (at 23°C/50% rh)
    3,6 %
    ISO 527
    Modulus of Elasticity  (at 23°C/50% rh) 3,4 GPa ISO 527
    Heat Distortion Temp. 90 °C ISO 75
    Continuous Service Temp. 120 °C UL 746B
    Maximum (short term) Use Temp. 160  °C /
    Thermal Conductivity 0,3 W/mK
    HOT-DISK



    Printer recommendations

    Description Value
    Printer nozzle temperature 260 - 285°C
    Heated bed temperature 60 - 80°C
    Print Speed 40 - 60 mm/s
    Bed Adhesion Magigoo PA on glass or a PEI Sheet
    Pre drying recommendations 100°C, 4 - 6 hours or 80°C, 12 hours



    *Printing profile available in Ultimaker Marketplace (Ultimaker certified material)


    To get the best results while printing we advise you to keep the 3D printer in a room where there is hardly any draft and/or temperature fluctuations. When the 3D printer is not being used it is important to keep filament in a bag and stored in a cool, dry and dark place until it is used again.



    Documents

    PDF icon Printing Guideline (692 KB)
    PDF icon Technical Data Sheet (149 KB)
    Material Safety Data Sheet (250 KB)
